Specifications

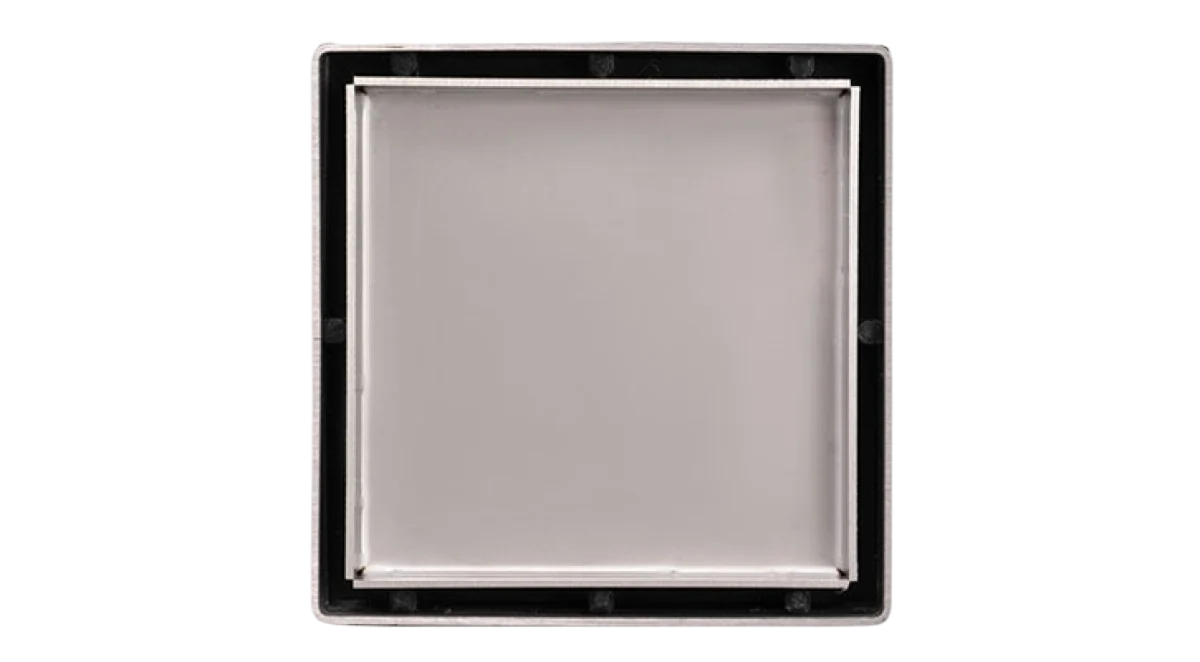

LTD 4
Center Drain: Requires traditional 4-way floor pitch
4″ x 4″ ABS & Stainless Steel Body
Stainless Tile Insert for 3/8″ material
Capacity: 8 gallons per minute per outlet.
Compatible with UCR 2
Components Required:
LT 4 Strainer Kit (Finish code must be specified when ordering (e.g., SS for Satin Stainless)
UCR 2
LTD 4-2
LND 4-2I: 4″ Stainless Tile Insert for 3/8″ material, 2″ outlet and throat, hair strainer, lift-out key, and Cast Iron clamp down drain
LND 4-2P: 4″ Stainless Tile Insert for 3/8″ material, 2″ outlet and throat, hair strainer, lift-out key, and PVC clamp down drain
LND 4-2A: 4″ Stainless Tile Insert for 3/8″ material, 2″ outlet and throat, hair strainer, lift-out key, and ABS clamp down drain
LTD4 B
LTD4 BP: 4″ Stainless Tile Insert for 3/8″ material, 2″ throat, hair strainer, lift-out key, and PVC Bonded Flange
LTD4 BA: 4″ Stainless Tile Insert for 3/8″ material, 2″ throat, hair strainer, lift-out key, and ABS Bonded Flange
LTD4 BS: 4″ Stainless Tile Insert for 3/8″ material, 2″ throat, hair strainer, lift-out key, and Stainless Steel Bonded Flange
Strainer Only
LT 4 (finish code required)
Includes: 4″ Stainless Tile Insert for 3/8″ material, 2″ throat, hair strainer, lift-out key
Satin Stainless — SS
Polished Stainless — PS
Satin Bronze — SB
Oil Rubbed Bronze – ORB
Matte Black — BK
Ten day lead time
Include:
Matte White, Gunmetal, Satin Champagne, Polished Gold, Polished Brass and new Satin Brass.
