Specifications

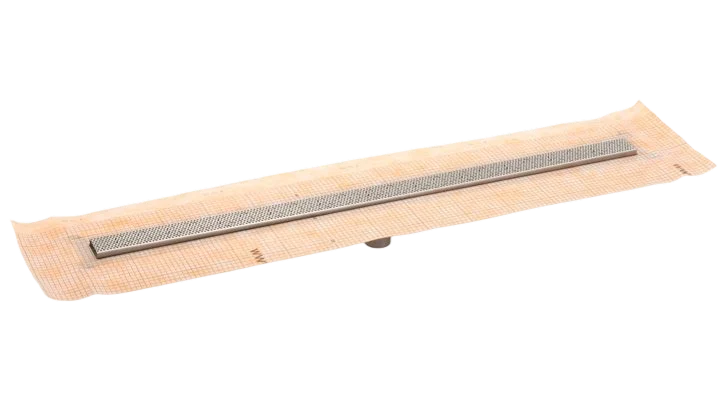

Adhesion Stainless Steel Grate Style
Fixed Flange: Pre-pitched channel with set length with center outlet location
Factory applied Schluter° Kerdi Membrane
16 gauge, 304L stainless steel perforated grate with stainless steel channel
Finished width: 2-1/2″, Min. height above subfloor*: 13/16″
Capacity: 9 gallons per minute
No-hub connection to waste line with rubber coupling (not included)
Recess channel into subfloor with placement brackets ST 65
FCSGR 6524: (1) 24″ Complete Kit
FCSGR 6532: (1) 32″ Complete Kit
FCSGR 6536: (1) 36″ Complete Kit
FCSGR 6542: (1) 42″ Complete Kit
FCSGR 6548: (1) 48″ Complete Kit
FCSGR 6560: (1) 60″ Complete Kit
Satin Stainless — SS
Polished Stainless — PS
Satin Bronze — SB
Oil Rubbed Bronze – ORB
Matte Black — BK
Ten day lead time
Include:
Matte White, Gunmetal, Satin Champagne, Polished Gold, Polished Brass and new Satin Brass.
