Specifications
Features

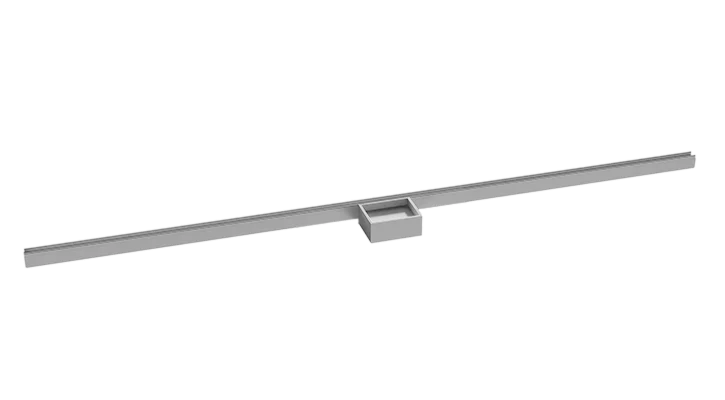

Fixed Length channel with center outlet location
Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
16 gauge, 304 stainless steel Slot and Channel
Overall width: 2-3/4″, Min. height above waterproofing: 1-13/16″
Capacity: 9 gallons per minute
Requires 2″ clamp down floor drain with 2″ throat (strainer size). Not included in complete kit.
Avaliable Models
FXST 24: 24″ Complete Kit
FXST 32: 32″ Complete Kit
FXST 36: 36″ Complete Kit
FXST 42: 42″ Complete Kit
FXST 48: 48″ Complete Kit
FXST 60: 60″ Complete Kit
Standard Finishes Available
Satin Stainless — SS
Polished Stainless — PS
Satin Bronze — SB
Oil Rubbed Bronze – ORB
Matte Black — BK
Specialty Finishes Available
Ten day lead time
Include:
Matte White, Gunmetal, Satin Champagne, Polished Gold, Polished Brass and new Satin Brass.
