Specifications

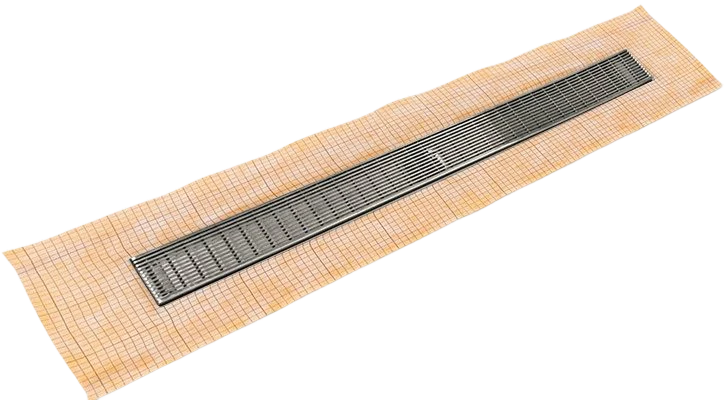

Fixed Flange: Pre-pitched channel with set length with center outlet location
Factory applied Schluter° Kerdi Membrane
12 gauge, 316 stainless steel wedge wire top grate with stainless steel channel
Finished width: 2-1/2″, Min. height above subfloor*: 13/16″
Capacity: 9 gallons per minute
No-hub connection to waste line with rubber coupling (not included)
Recess channel into subfloor with placement brackets ST 65
FCSTIF 6524: 24″ Complete Kit
FCSTIF 6532: 32″ Complete Kit
FCSTIF 6536: 36″ Complete Kit
FCSTIF 6542: 42″ Complete Kit
FCSTIF 6548: 48″ Complete Kit
FCSTIF 6560: 60″ Complete Kit
Satin Stainless — SS
Polished Stainless — PS
Satin Bronze — SB
Oil Rubbed Bronze – ORB
Matte Black — BK
Ten day lead time
Include:
Matte White, Gunmetal, Satin Champagne, Polished Gold, Polished Brass and new Satin Brass.
Hair Maintenance
All of our drains include a complimentary Hair Maintenance kit
This kit includes:
- Hair Basket
- Lift-out key
- User Guide
- Storage Pouch
