Installation

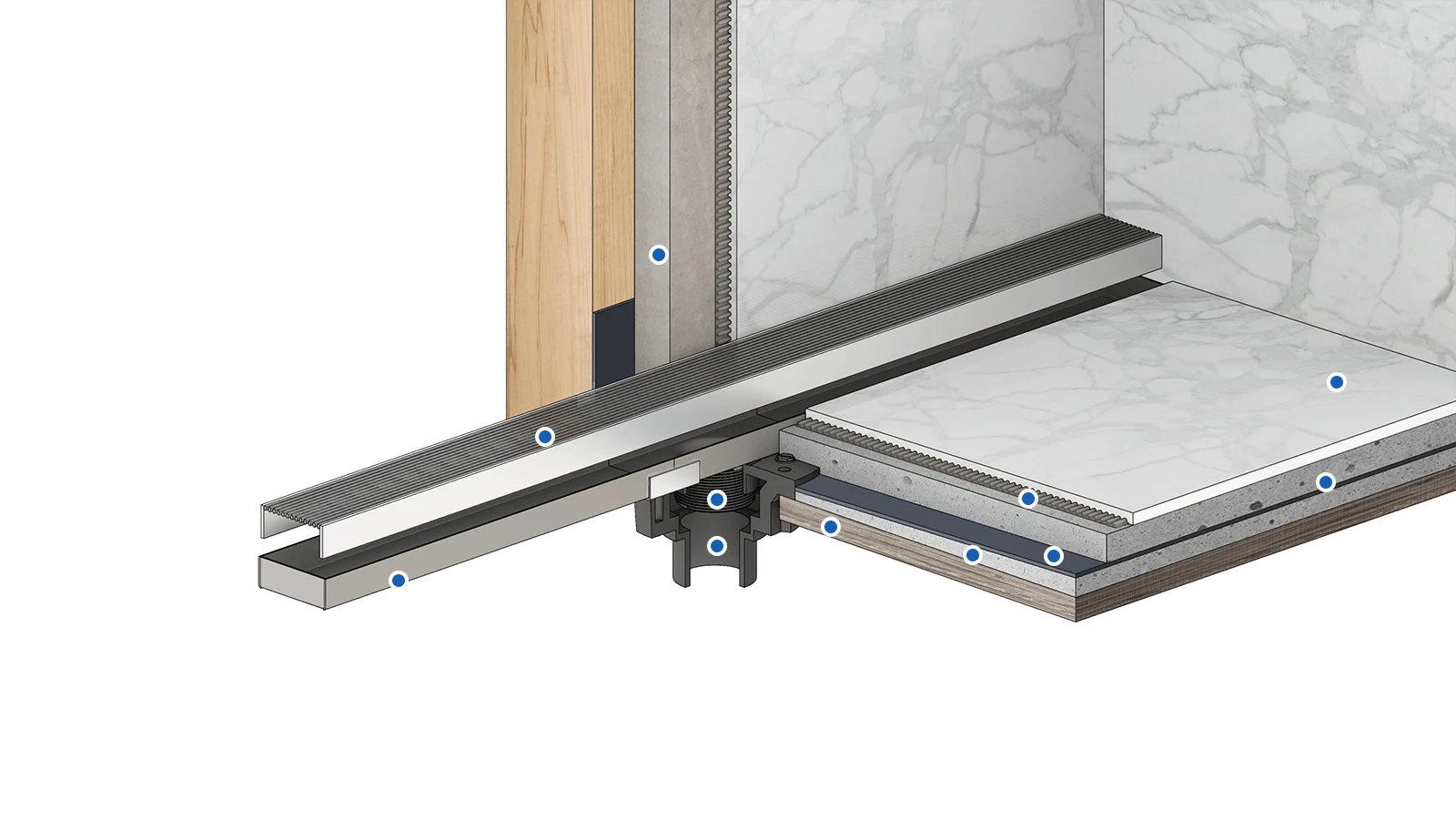

Site Sizable® (S) Installation
For exact wall to wall installation. Length can be cut on site. Outlet can be located anywhere on channel run. Available in kit lengths or components. Install with standard waterproofing methods.
Copper Pan
Fiberglass
Hot Mop
Lead Pan
PVC Liner
Rubber Liner (Chloraloy®)
Standard height and Low Profile options
PVC – S-AG, S-LAG, S-DG, S-LT, S-TIF, S-LTIF
16 gauge, 304L stainless steel – S-AS, S-TIFAS, S-LTIFAS
12 gauge, 316 Stainless Steel
16 gauge, 304 Stainless Steel

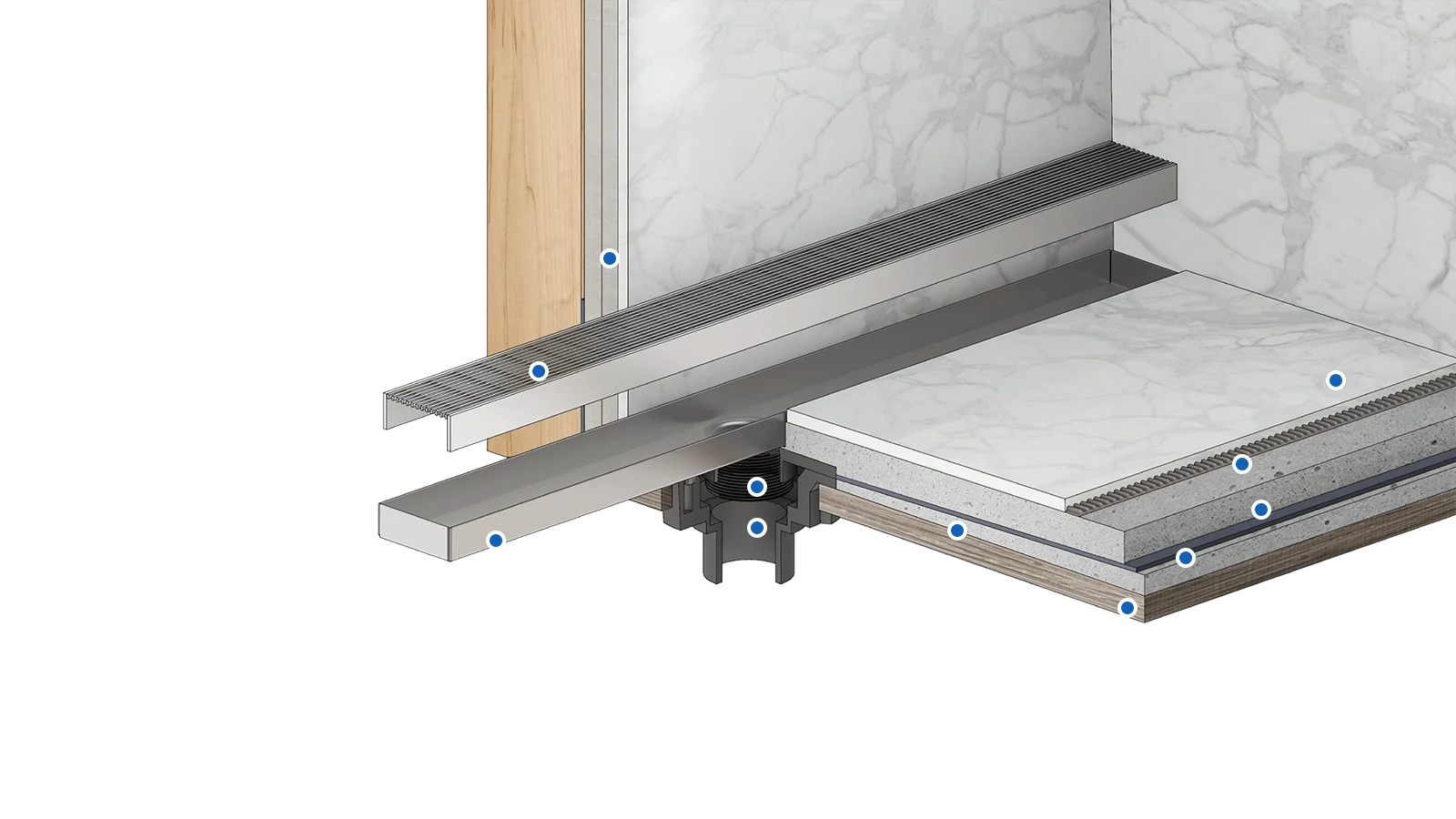

Fixed Length (FX)
Pre-pitched channel with set outlet location. Standard kit sizes or custom fabrication available. Install with standard waterproofing methods.
Copper Pan
Fiberglass
Hot Mop
Lead Pan
PVC Liner
Rubber Liner (Chloraloy)
16 gauge, 304L stainless steel – FXIG
12 gauge, 316L stainless steel – FXAS
12 gauge, 304L stainless steel – FXTIF, EXLTIF
7 gauge, 304L stainless steel – FXSG
16 gauge, 304 stainless steel

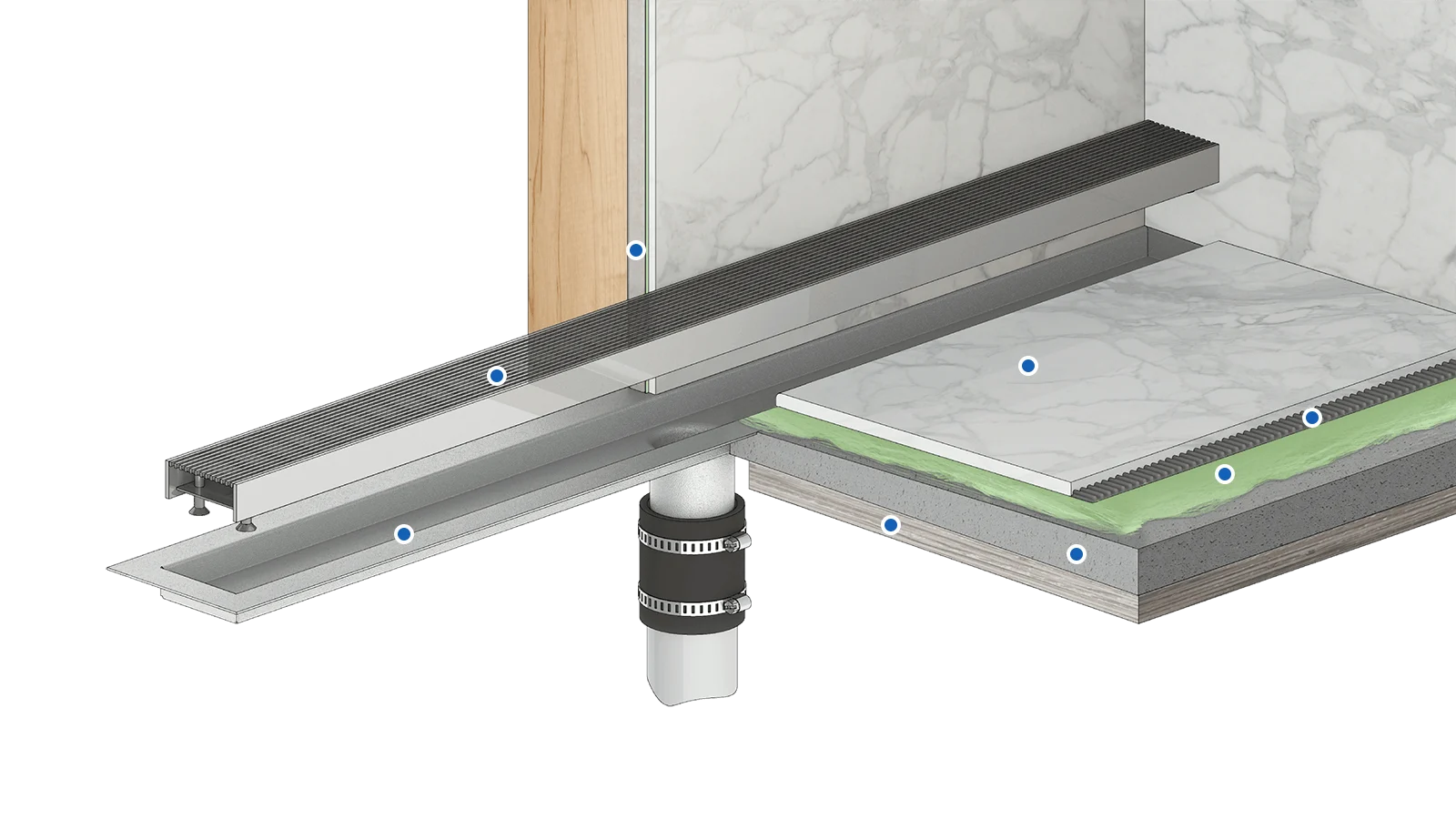

Fixed Flange (FF) Installation
Pre-pitched flanged channel with set outlet location. Standard kits sizes or custom fabrication available. Install with liquid membrane or fabric sheet waterproofing methods (Bonded Flange). Vertical (down) outlet.
Liquid Membrane
Fabric Sheet Membrane
16 gauge, 304 stainless steel
18 gauge, 304L stainless steel – FFST
16 gauge, 304L stainless steel – FFIG, FFTIF
12 gauge, 316L stainless steel – FFAS
7 gauge, 304L stainless steel – FFSG

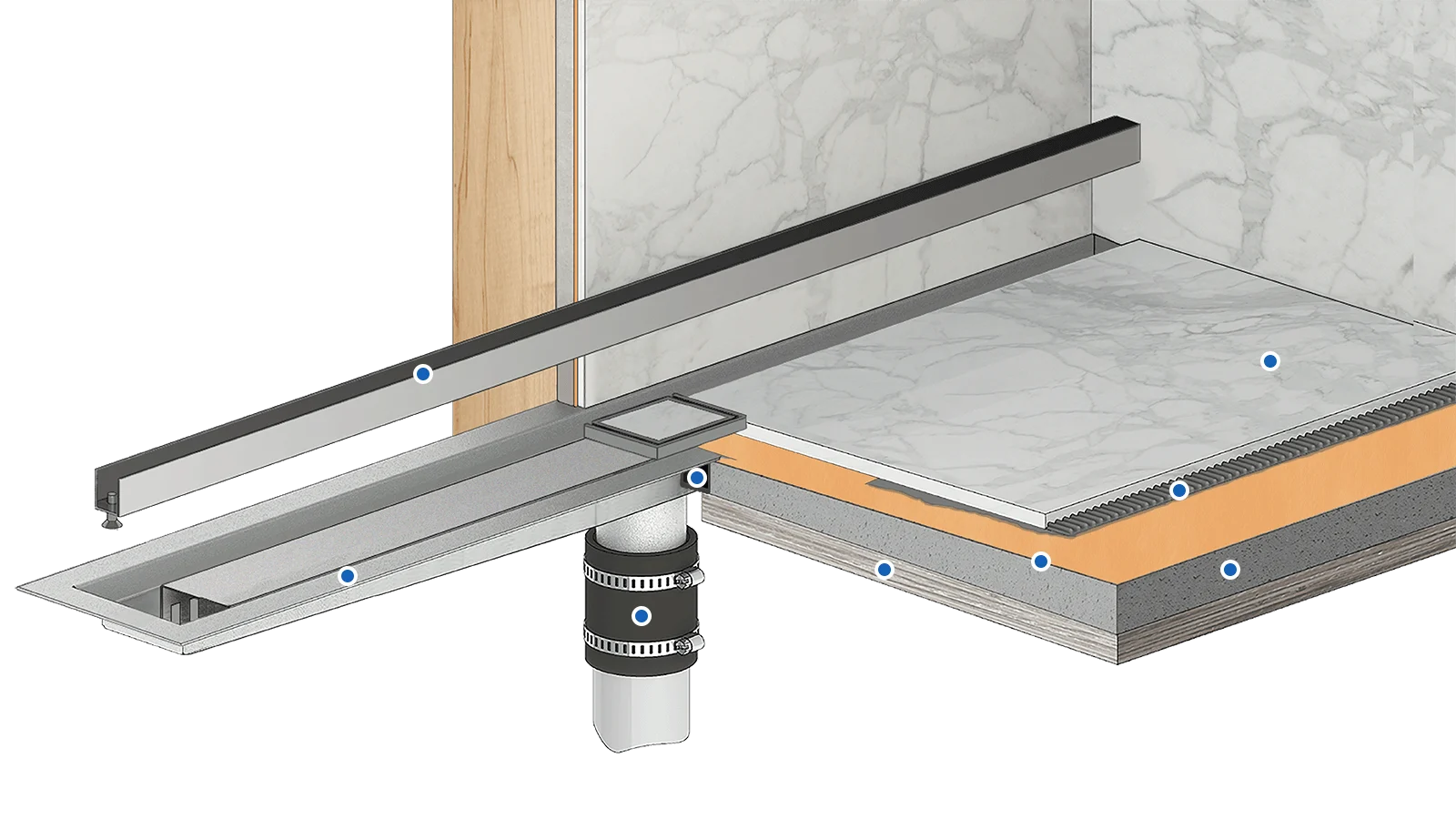

Flange with Schluter-Kerdi (FCS) Installation
Pre-pitched flanged channel with Schluter(r)-KERDI fabric in a set length and center outlet location. Standard kit sizes or custom fabrication available. Product is compliant with Schluter-KERDI Shower System Warranty. Vertical (down) outlet.
Schluter-KERDI fabric waterproofing
16 gauge, 304L stainless steel
18 gauge, 304L stainless steel – FCSST
16 gauge, 304L stainless steel – FFIG, FFTIF
12 gauge, 316L stainless steel – FFAS
7 gauge, 304L stainless steel – FFSG
