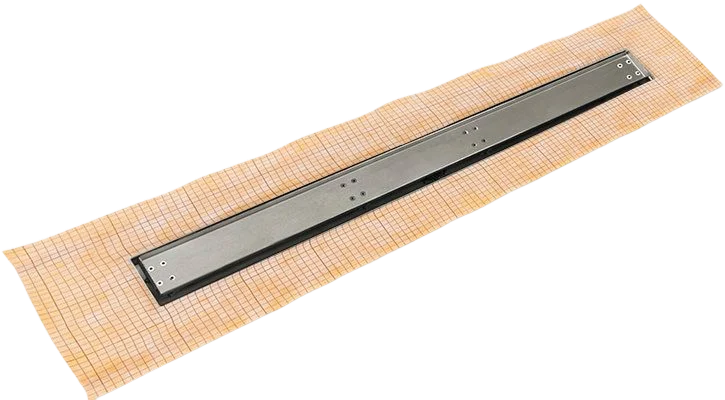

FCSTIF 65

Fixed Flange: Pre-pitched channel with set length with center outlet location

Factory applied Schluter° Kerdi Membrane

16 gauge, 304L stainless steel tile insert frame with stainless steel channel

Accepts flooring material up to 3/8″ material thickness

Finished width: 2-9/16″, Min. height above subfloor*: 1-1/16″

Capacity: 9 gallons per minute

No-hub connection to waste line with rubber coupling (not included)

Recess channel into subfloor with placement brackets ST 65

FCSTIF 6524: (1) 24″ Complete Kit

FCSTIF 6536: (1) 36″ Complete Kit

FCSTIF 6542: (1) 42″ Complete Kit

FCSTIF 6548: (1) 48″ Complete Kit

FCSTIF 6560: (1) 60″ Complete Kit

Satin Stainless — SS

Polished Stainless — PS

Satin Bronze — SB

Oil Rubbed Bronze – ORB

Matte Black — BK

Ten day lead time

Include:
Matte White, Gunmetal, Satin Champagne, Polished Gold, Polished Brass and new Satin Brass.

• FCSTIF 65 Submittal

• FF – Installation Instructions

S Installation – Standard Waterproofing
Standard Wall Conditions
